PAPDi-FA Anchor Point (Steel)
SKU: NS-PAPDI-FA
PAPDi-FA Anchor Point (Steel)

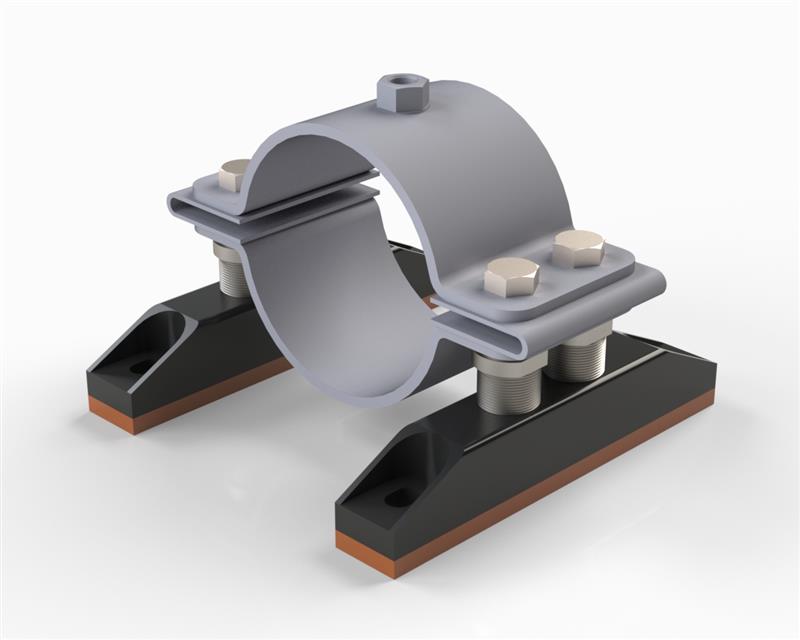

Designed to stop axial, lateral and vertical movement of pipe. Thermal break pad included. These can be floor, ceiling or wall mounted. Designed with height adjustable to aid installation.
Using FPC to avoid having to use Pipe Stops – Up to allowable forces as listed below.
For use on Horizontal Pipe runs only
Choose Product SpecificationDesign Features
- High Performance Coatings EP&ZN
- Easy height adjustment with "NS Socket Technology"
- Reduced heat loss with Thermal Break (Included)
- For steel pipe sizes DN100 - DN350
- 200, 250 and 300NB come with MPC (included)
- FPC Clip provided in BZP finish
Applications
- CHW
- Cold Water Services
- Condenser and Heat Rejection
Product Specification
| Part Number | Nominal size (inch) | Nominal size (mm) | Clip clamping range (mm) | Load axial (kN) | Load vertical hung (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|---|---|
| NS-PAPDi-100-FA | 4 | 100 | 114 | 10 | 10 | 10 | |
| NS-PAPDi-125-FA | 5 | 125 | 139 | 10 | 10 | 10 | |
| NS-PAPDi-150-FA | 6 | 150 | 168 | 10 | 10 | 10 | |
| NS-PAPDi-200-FA | 8 | 200 | 219 | 10 | 10 | 10 | |
| NS-PAPDi-250-FA | 10 | 250 | 273 | 10 | 10 | 10 | |
| NS-PAPDi-300-FA | 12 | 300 | 324 | 10 | 10 | 10 | |
| NS-PAPDi-350-FA | 14 | 350 | 356 | 10 | 10 | 10 |
