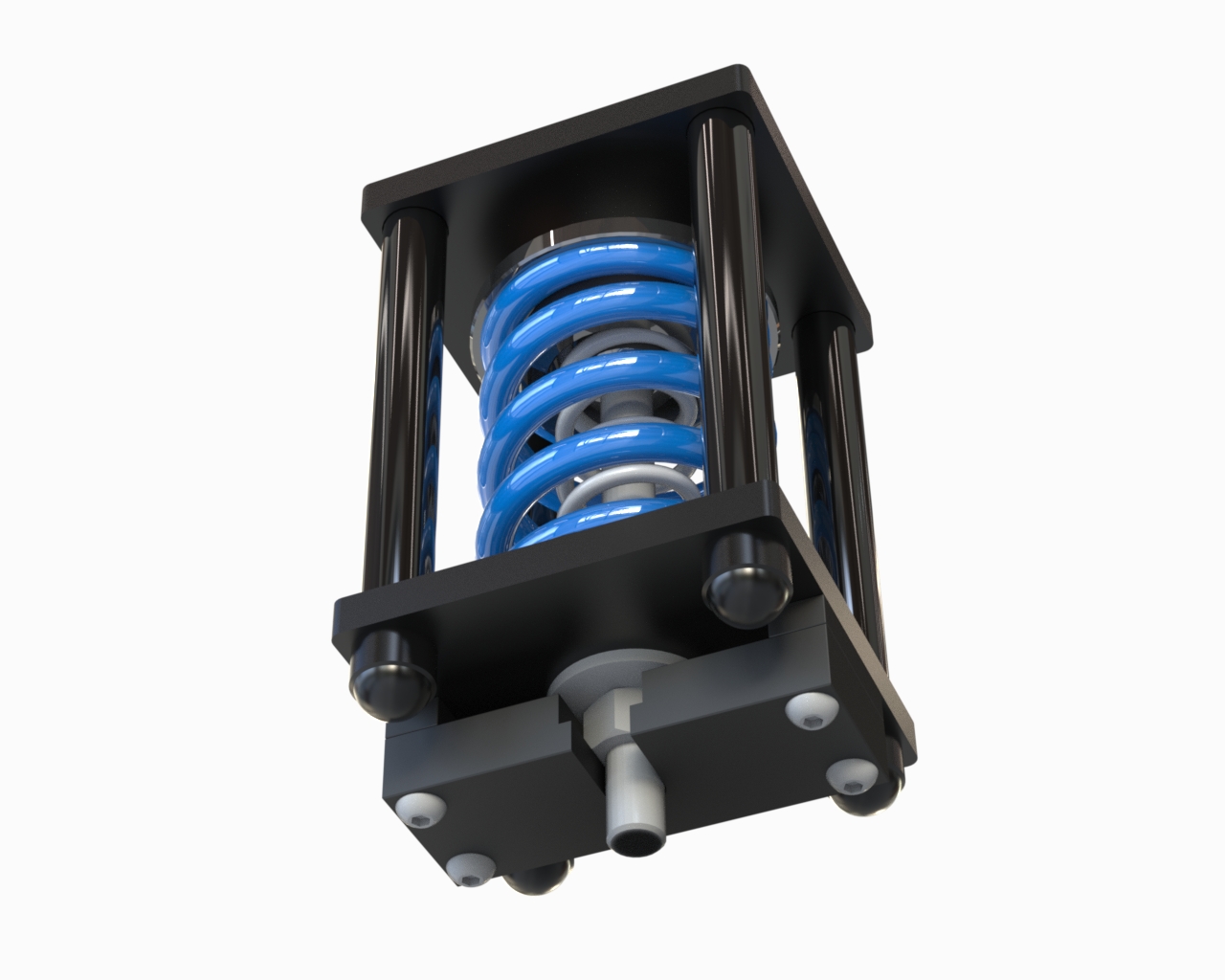

Kage Lock QuadDragon Spring Hanger

SKU: QD-KL

Kage Lock QuadDragon Spring Hanger

A Heavy Duty range of steel spring hangers with a removable lock off device offering the optimum performance for low-frequency vibration isolation. Comprehensive load ranges and different fixing requirements are offered. Engineered to temporarily lock your springs and handle additional loads during transport, installation, and cantilevering pipework during
installation stages. When job is complete simply remove it. Can be refitted for maintenance and system drain downs.

Choose Product Specification

Design Features

  • Temporary Lock Off - Ideal for modular assemblies that will be transported to site.
  • Removable Design - Restores full isolation instantly
  • Electro painted steel frame with other steel parts being HDG or powder coated
  • Helical Steel Springs, colour coded and manufactured in the UK to BS1726 with nominal deflection up to 50mm
  • Includes bespoke 12mm dampening arrangement including rubber block
  • 50% Overload capacity
  • Pre-compression of spring possible before installation and can be delivered pre-set for ease of installation
  • Fitting via drop rod or direct to supporting structure. Unit has M20 threaded connection top and bottom

Applications

  • Pipework & Ductwork
  • Suspended Plant
  • Axial Fans & Fan Coil units
  • Acoustic Ceilings

Product Specification

Part NumberSuitable for outsideMax temperature (C°)Max spring load (kg)Deflection (mm)Add to Quote
QUADDRAGON-1000-50-BLUE-WHITE-KLYES200100050
QUADDRAGON-1200-50-RED-KLYES200120050
QUADDRAGON-1600-50-RED-PURPLE-1YES200160050
