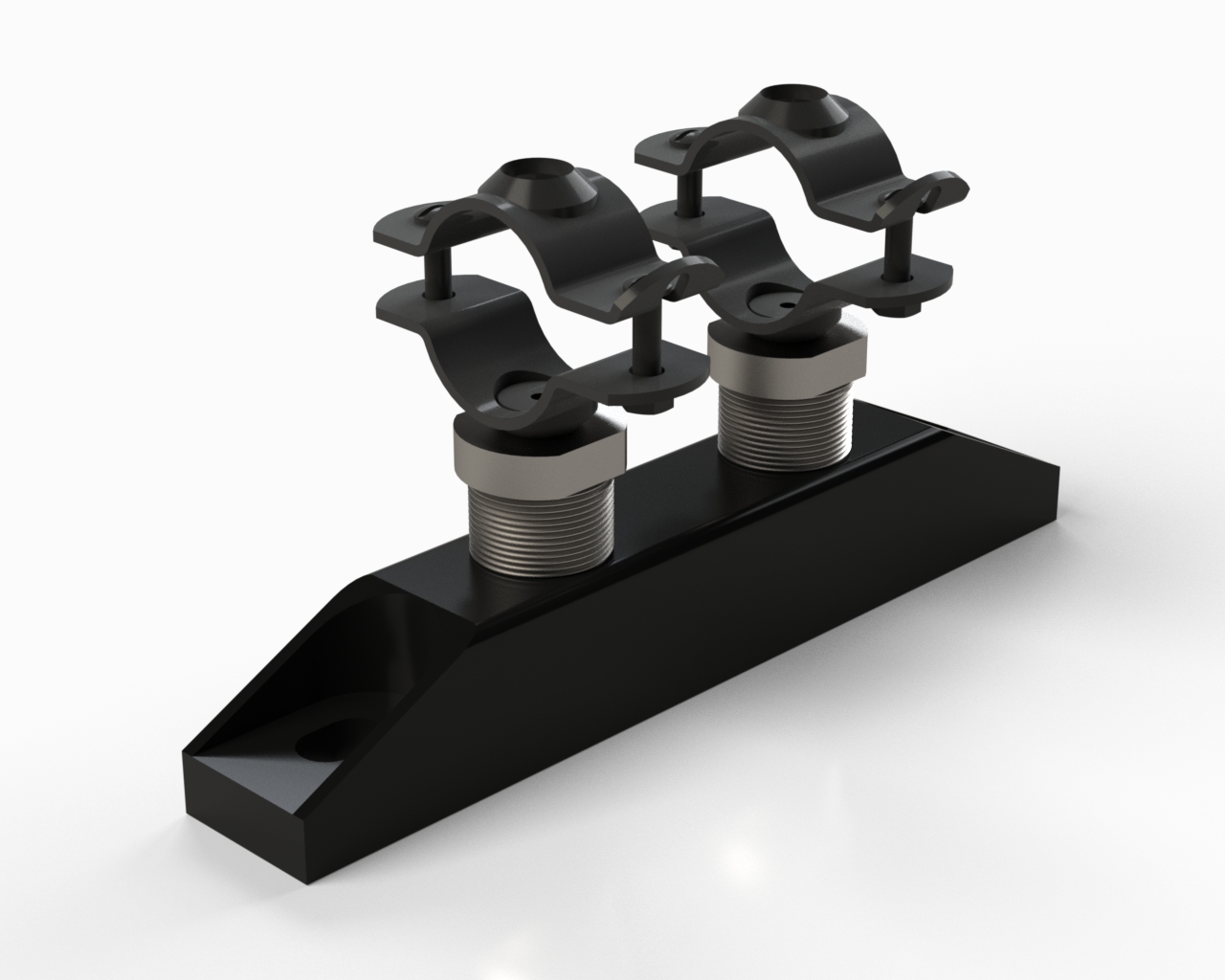

PAP Anchor Point (Cu/SS)
SKU: NS-PAP-CU
PAP Anchor Point (Cu/SS)
Designed to stop axial, lateral and vertical movement of Copper and Stainless pipes. These can be floor, ceiling or wall mounted. Designed with height adjustable to aid installation.
Choose Product SpecificationDesign Features
- High Performance Coatings EP&ZN
- Easy height adjustment with "NS Socket Technology"
- Supplied with EP Coated Clips to avoid issues with dissimilar metals
- For Copper or Stainless Steel pipes 15 - 76mm OD
Applications
- HWS
- LTHW
- Heating
- COND
Product Specification
| Part Number | Suitable for copper or stainless pipes | Clip clamping range (mm) | Load axial (kN) | Load vertical sat (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|---|
| NS-PAP-CU-15mm | YES | 15-18 | 9 | 9 | 9 | |
| NS-PAP-CU-22mm | YES | 20-24 | 9 | 9 | 9 | |
| NS-PAP-CU-28mm | YES | 25-30 | 9 | 9 | 9 | |
| NS-PAP-CU-35mm | YES | 31-35 | 9 | 9 | 9 | |
| NS-PAP-CU-42mm | YES | 40-45 | 9 | 9 | 9 | |
| NS-PAP-CU-54mm | YES | 48-58 | 9 | 9 | 9 | |
| NS-PAP-CU-67mm | YES | 67-72 | 9 | 9 | 9 | |
| NS-PAP-CU-76mm | YES | 76-81 | 9 | 9 | 9 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
