PAPD-FA - Anchor Point (Steel)
SKU: NS-PAPD-1

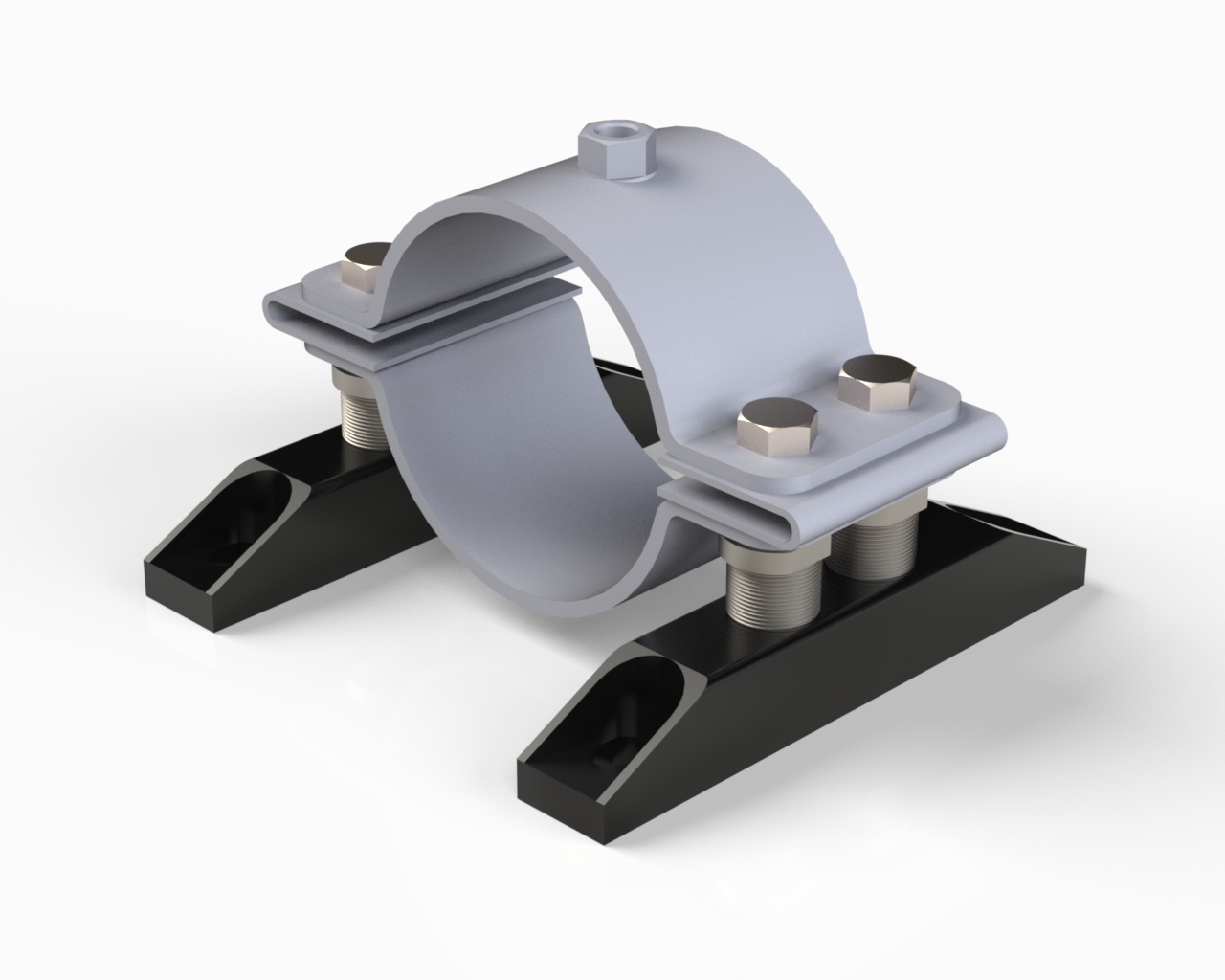

PAPD-FA – Anchor Point (Steel)
Designed to stop axial, lateral and vertical movement of pipe. These can be floor, ceiling or wall mounted. Designed with height adjustable to aid installation. Using FPC to avoid having to use Pipe Stops – Up to allowable forces as listed below.
For use on Horizontal Pipe runs only
Choose Product SpecificationDesign Features
- High Performance Coatings EP&ZN
- Easy height adjustment with "NS Socket Technology"
- Supplied with BZP FPC Clip
- For steel pipe sizes 100-350NB
- 200, 250 and 300NB come with MPC (included)
Product Specification
| Part Number | Nominal size (inch) | Nominal size (mm) | Clip clamping range (mm) | Load axial (kN) | Load vertical hung (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|---|---|
| NS-PAPD-100-FA | 4 | 100 | 114 | 10 | 10 | 10 | |
| NS-PAPD-125-FA | 5 | 125 | 139 | 10 | 10 | 10 | |
| NS-PAPD-150-FA | 6 | 150 | 168 | 10 | 10 | 10 | |
| NS-PAPD-200-FA | 8 | 200 | 219 | 10 | 10 | 10 | |
| NS-PAPD-250-FA | 10 | 250 | 274 | 10 | 10 | 10 | |
| NS-PAPD-300-FA | 12 | 300 | 324 | 10 | 10 | 10 | |
| NS-PAPD-350-FA | 16 | 350 | 356 | 10 | 10 | 10 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
