PAPDi - Anchor Point (Steel)
SKU: NS-PAPDI
PAPDi – Anchor Point (Steel)

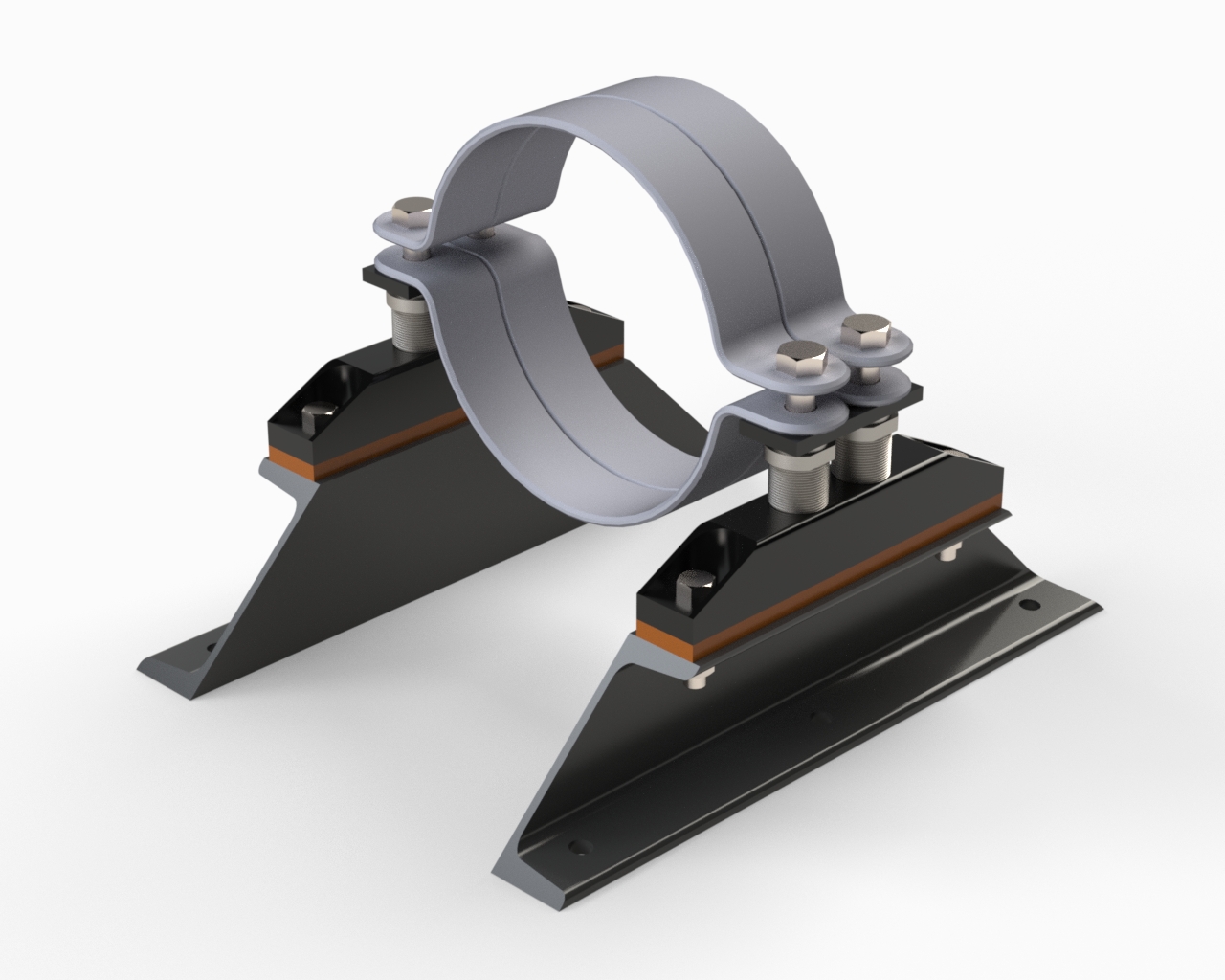

Designed to stop axial, lateral and vertical movement of pipe. Thermal break pad included. These can be floor, ceiling or wall mounted. Designed with height adjustable to aid installation.
Choose Product SpecificationDesign Features
- High Performance Coatings EP&ZN
- Easy height adjustment with "NS Socket Technology"
- For steel pipe sizes 50 - 300mm NB
- Reduced heat loss with Thermal Break (Included)
- 200, 250 and 300NB come with MPC included
Applications
- Chilled Water
- Cold Water Services
- Condenser and Heat Rejection
Product Specification
| Part Number | Nominal size (inch) | Nominal size (mm) | Clip clamping range (mm) | Load axial (kN) | Load vertical sat (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|---|---|
| NS-PAPDI-50NB | 2 | 50 | 61 | 42 | 42 | 42 | |
| NS-PAPDI-65NB | 2 1/2 | 65 | 76 | 42 | 42 | 42 | |
| NS-PAPDI-80NB | 3 | 80 | 89 | 42 | 42 | 42 | |
| NS-PAPDI-100NB | 4 | 100 | 114 | 42 | 42 | 42 | |
| NS-PAPDI-125NB | 5 | 125 | 139 | 42 | 42 | 42 | |
| NS-PAPDI-150NB | 6 | 150 | 168 | 42 | 42 | 42 | |
| NS-PAPDI-200NB | 8 | 200 | 219 | 42 | 42 | 42 | |
| NS-PAPDI-250NB | 10 | 250 | 273 | 42 | 42 | 42 | |
| NS-PAPDI-300NB | 12 | 300 | 324 | 42 | 42 | 42 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
