PFS-D Lateral Joint
SKU: NS-PFS-D
PFS-D Lateral Joint

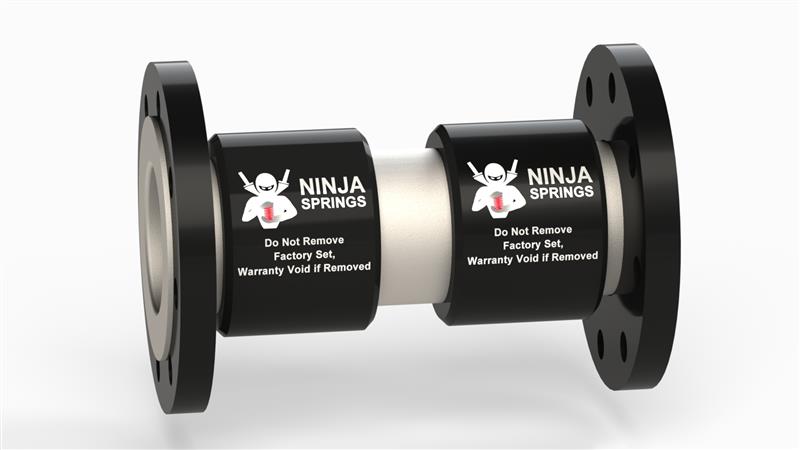

The Ninja PFS Pump Flexible System is a mechanically restrained flexible connector designed to decouple the adjoining pipework from vibration sources such as pumps and mechanical plant. The connector introduces a rubber isolation break within the pipework while maintaining full structural restraint through a stainless steel outer shell, eliminating metal-to-metal continuity and reducing vibration transmission from equipment into the piping system.
Choose Product SpecificationDesign Features
- Self-anchoring design – no external anchors or tie rods required
- Rubber vibration isolation break
- Compact from 360 mm face-to-face dimension
- Direct replacement for conventional rubber flexible connectors
- Simple installation between PN16 flanges
Product Specification
| Part Number | Suitable for outside | Max temperature (C°) | Nominal size (inch) | Nominal size (mm) | Overall length (mm) Face to Face | Lateral movement ± (mm) | Add to Quote |
|---|---|---|---|---|---|---|---|
| NS-PFS-D-065 | NO | 100 | 2 1/2 | 65 | 360 | 10 | |
| NS-PFS-D-080 | NO | 100 | 3 | 80 | 360 | 10 | |
| NS-PFS-D-100 | NO | 100 | 4 | 100 | 360 | 10 | |
| NS-PFS-D-125 | NO | 100 | 5 | 125 | 360 | 10 | |
| NS-PFS-D-150 | NO | 100 | 6 | 150 | 400 | 10 | |
| NS-PFS-D-200 | NO | 100 | 8 | 200 | 400 | 10 |
Related products
-
PFS – Pump Flexible System
Select options This product has multiple variants. The options may be chosen on the product page -
NINJA EXO – Shielded Expansion Joint (Grooved)
Select options This product has multiple variants. The options may be chosen on the product page -

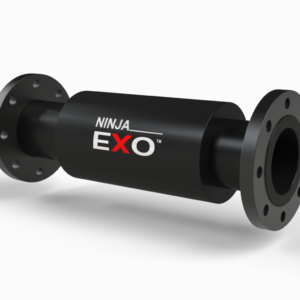

NINJA EXO – Shielded Expansion Joint (Flanged)
