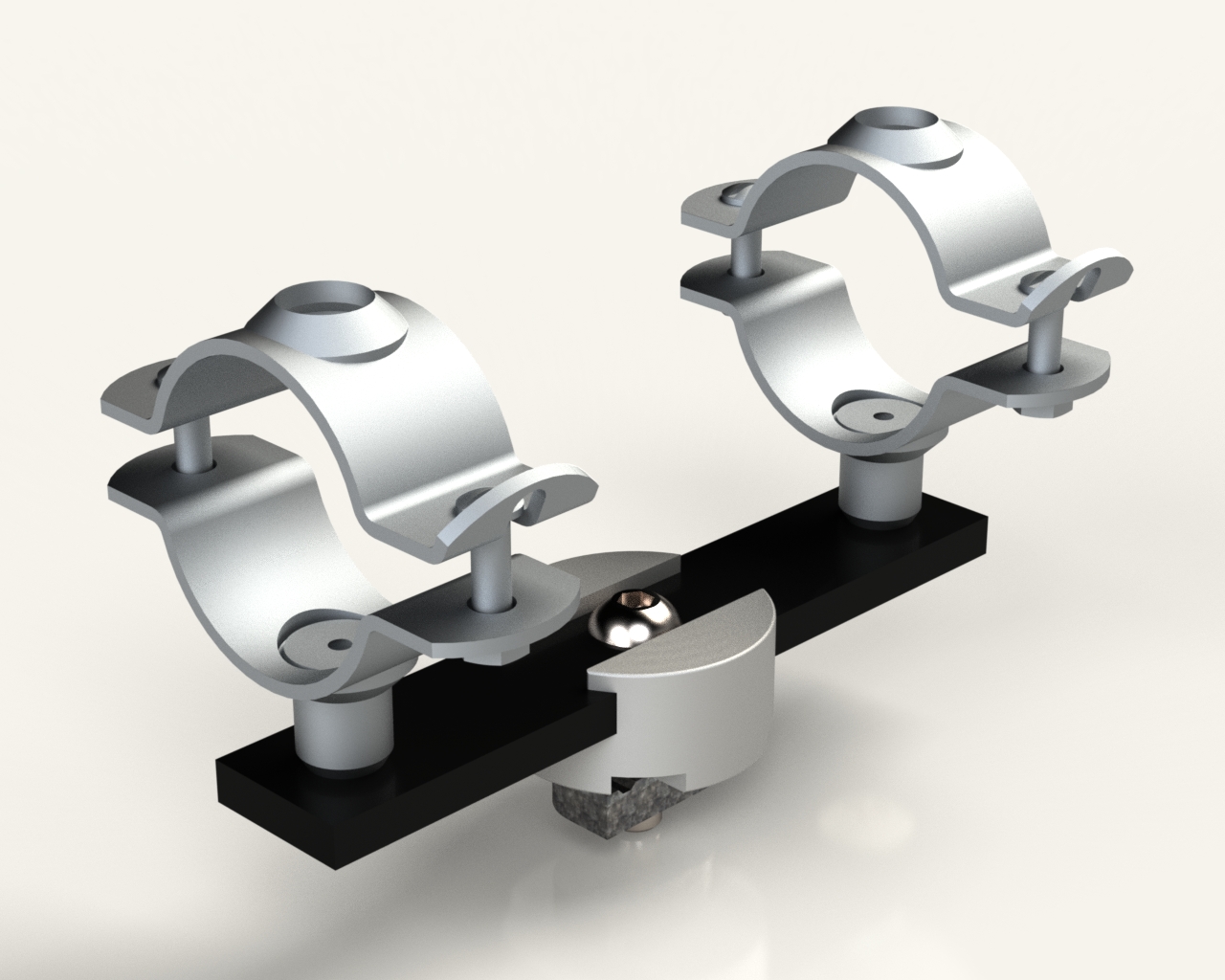

LWFA Anchor Point (Steel)
SKU: NS-LWFA
LWFA Anchor Point (Steel)
Designed to stop axial, lateral and vertical movement of pipe.
These can be floor or ceiling mounted and are suitable for connections to Strut profiles.
Choose Product SpecificationDesign Features
- High Performance Coatings EP&ZN
- For Steel Pipes 15-50NB
- Specially designed for use on strut profiles
- Supplied with BZP Clips
Applications
- Anchoring of Piped Services including
- Heating (LTHW & MTHW)
- COND
Product Specification
| Part Number | Nominal size (inch) | Nominal size (mm) | Clip clamping range (mm) | Load axial (kN) | Load vertical sat (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|---|---|
| NS-LWFA-15NB | 1/2 | 15 | 20-24 | 2.5 | 2.5 | 2.5 | |
| NS-LWFA-20NB | 3/4 | 20 | 25-30 | 2.5 | 2.5 | 2.5 | |
| NS-LWFA-25NB | 1 | 25 | 31-35 | 2.5 | 2.5 | 2.5 | |
| NS-LWFA-32NB | 1 1/4 | 32 | 40-45 | 2.5 | 2.5 | 2.5 | |
| NS-LWFA-40NB | 1 1/2 | 40 | 48-58 | 2.5 | 2.5 | 2.5 | |
| NS-LWFA-50NB | 2 | 50 | 60-65 | 2.5 | 2.5 | 2.5 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
