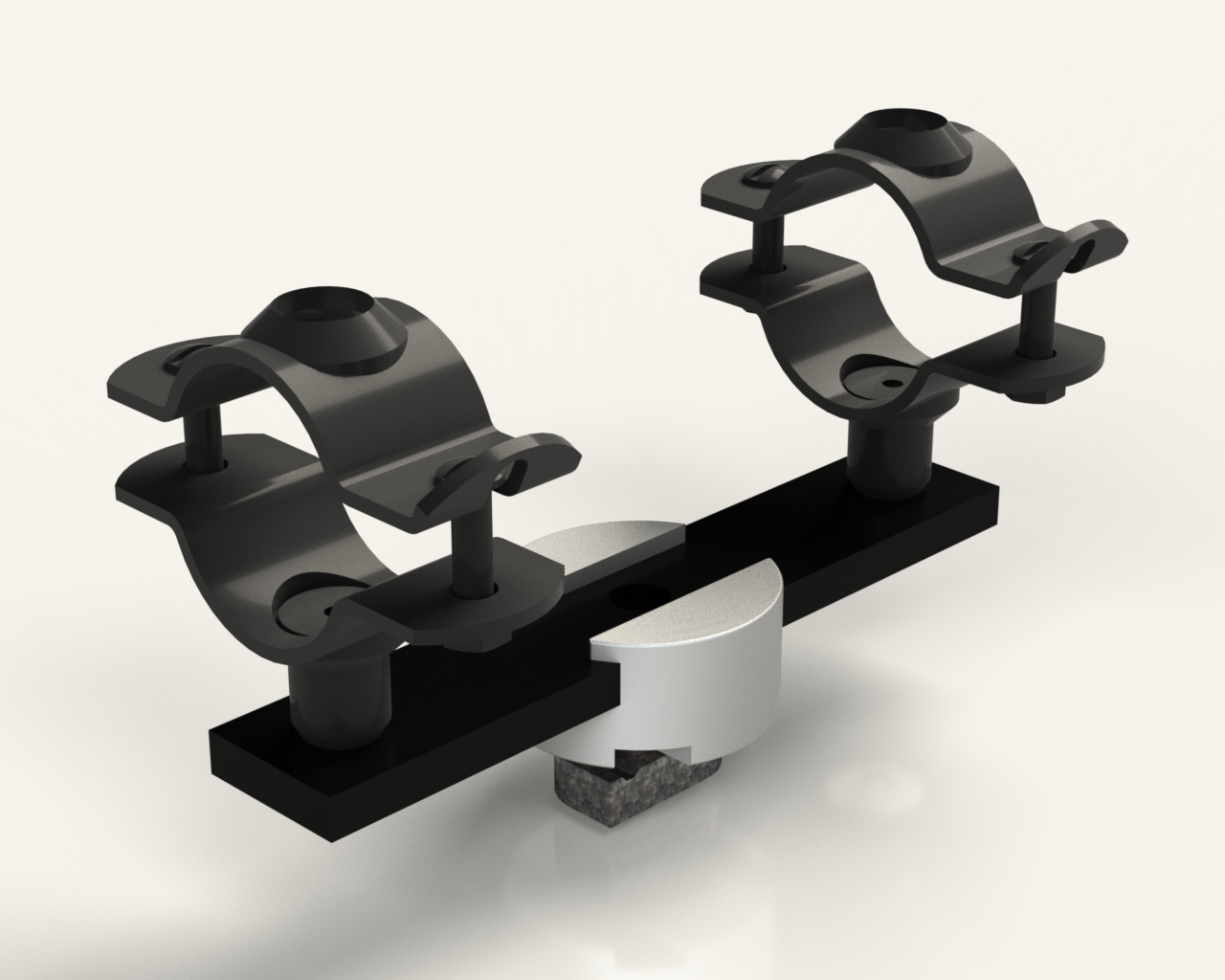

LWPG – Slide Guide (Cu/SS)
Designed to allow free axial movement of pipe while restricting lateral or vertical movement. These are purposely designed for the challenging application such as primary guides for expansion
joints. These can be floor or ceiling mounted and are suitable for connections to strut profiles.
Design Features
- Coated in EP and BZP
- Supplied with EP Coated Clips to avoid issues with dissimilar metals
- Low friction movement with "NS Slide Technology"
- Specially designed for use on strut profiles
- For Copper or Stainless pipes 15 - 54mm OD
Applications
- LTHW
- HWS
- Heating
Product Specification
| Part Number | Clip clamping range (mm) | Axial movement; (mm) | Load vertical hung (kN) | Load lateral (kN) | Add to Quote |
|---|---|---|---|---|---|
| NS-LWPG-CU-15mm | 15-18 | 70 | 5 | 2.5 | |
| NS-LWPG-CU-22mm | 20-24 | 70 | 5 | 2.5 | |
| NS-LWPG-CU-28mm | 25-30 | 70 | 5 | 2.5 | |
| NS-LWPG-CU-35mm | 31-35 | 70 | 5 | 2.5 | |
| NS-LWPG-CU-42mm | 40-45 | 70 | 5 | 2.5 | |
| NS-LWPG-CU-54mm | 48-58 | 70 | 5 | 2.5 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
