FHSS - 15mm Def - Stainless Steel Flexible Hose (BSPT)
SKU: NS-FHSS-BSPT-15

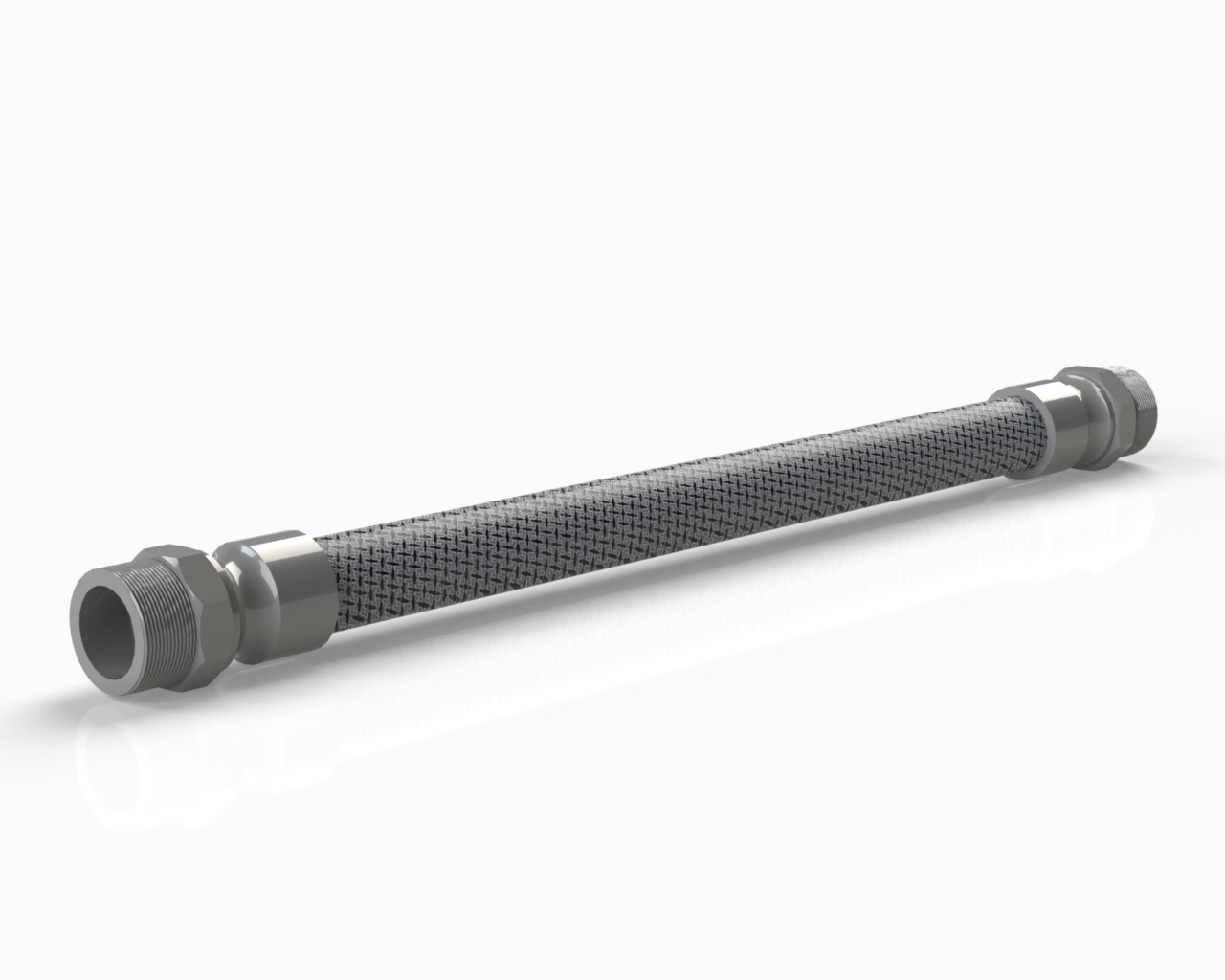

FHSS – 15mm Def – Stainless Steel Flexible Hose (BSPT)
316 Stainless Steel Convoluted Hose with 304 Stainless Steel braided outer. Offered in BSPT male threaded ends.
Choose Product SpecificationDesign Features
- Stainless Steel Construction
- Manufactured to ISO 10380:2012
- Can be used to reduce vibration & noise from plant units
- Can be used to allow lateral movement of 15mm +/-
- For use on LTHW, CHW, Steam & Condensate
- Temperature range -200°C to +600°C
Applications
- LTHW
- CHW
- STEAM
- COND
Product Specification
| Part Number | Nominal size (inch) | Nominal size (mm) | Overall length (mm) Face to Face | Lateral movement ± (mm) | Add to Quote |
|---|---|---|---|---|---|
| NS-FHSS-BSPT-015-250 | 1/2 | 15 | 250 | 15 | |
| NS-FHSS-BSPT-020-250 | 3/4 | 20 | 250 | 15 | |
| NS-FHSS-BSPT-025-250 | 1 | 25 | 250 | 15 | |
| NS-FHSS-BSPT-032-250 | 1 1/4 | 32 | 250 | 15 | |
| NS-FHSS-BSPT-040-300 | 1 1/2 | 40 | 300 | 15 | |
| NS-FHSS-BSPT-050-300 | 2 | 50 | 300 | 15 |
Downloadable Documents
3D Files
Register or login to view the available downloads for this product. Files are provided in .rfa format (Revit Family File) and are intended for professional use.
Please note: All files are property of Ninja Springs Ltd. Redistribution, resale, or rebranding of these files is strictly prohibited.
